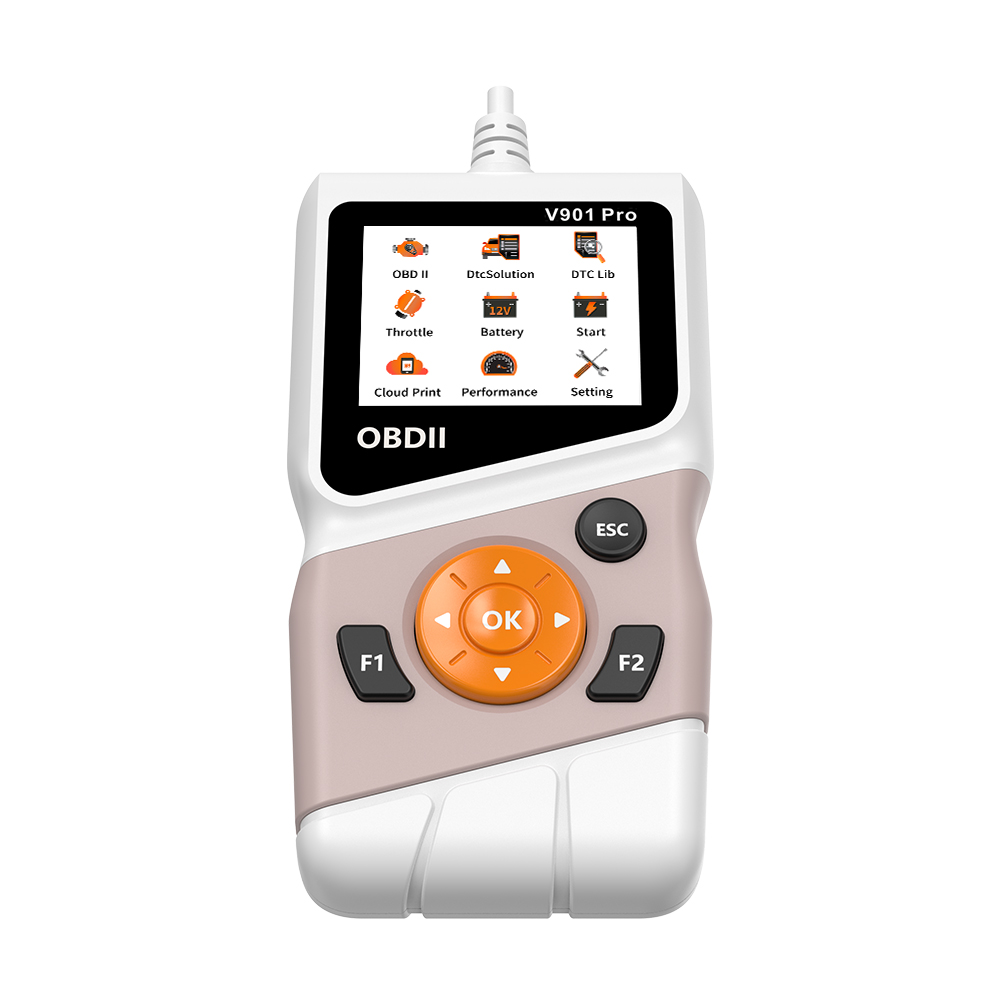

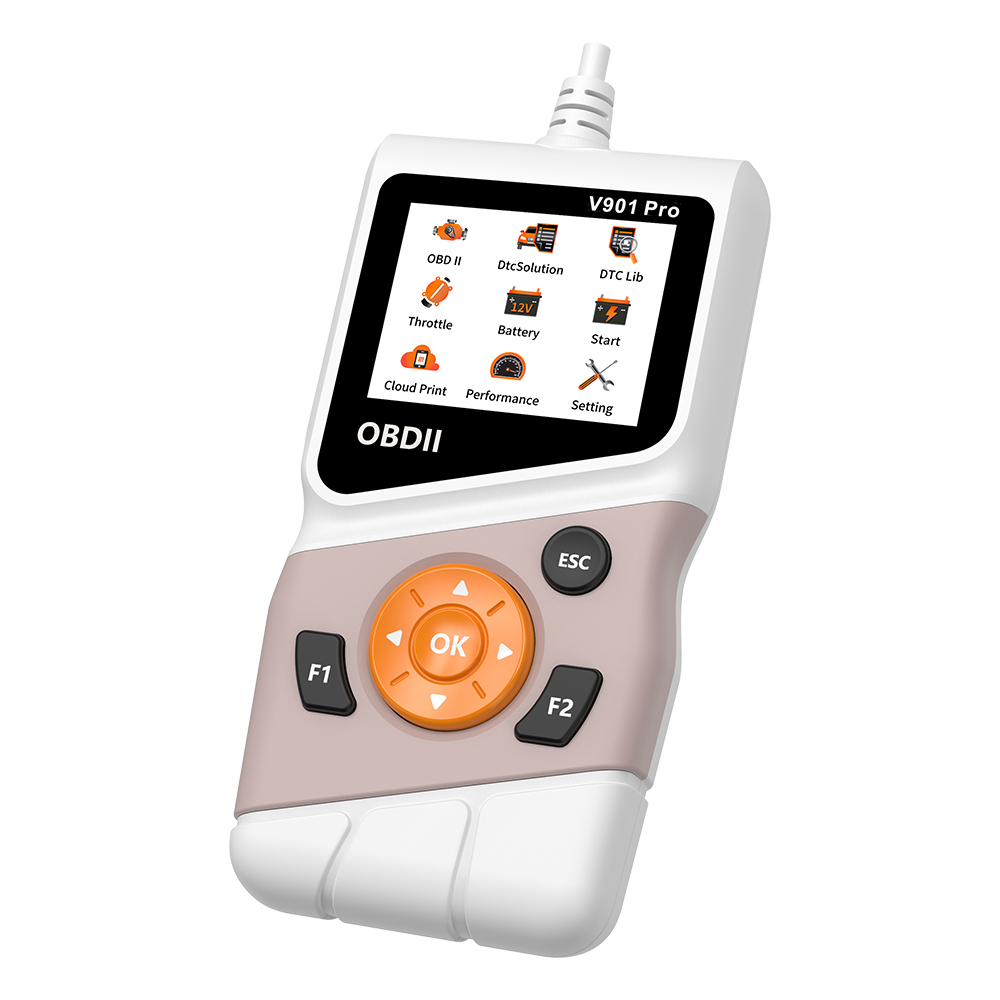

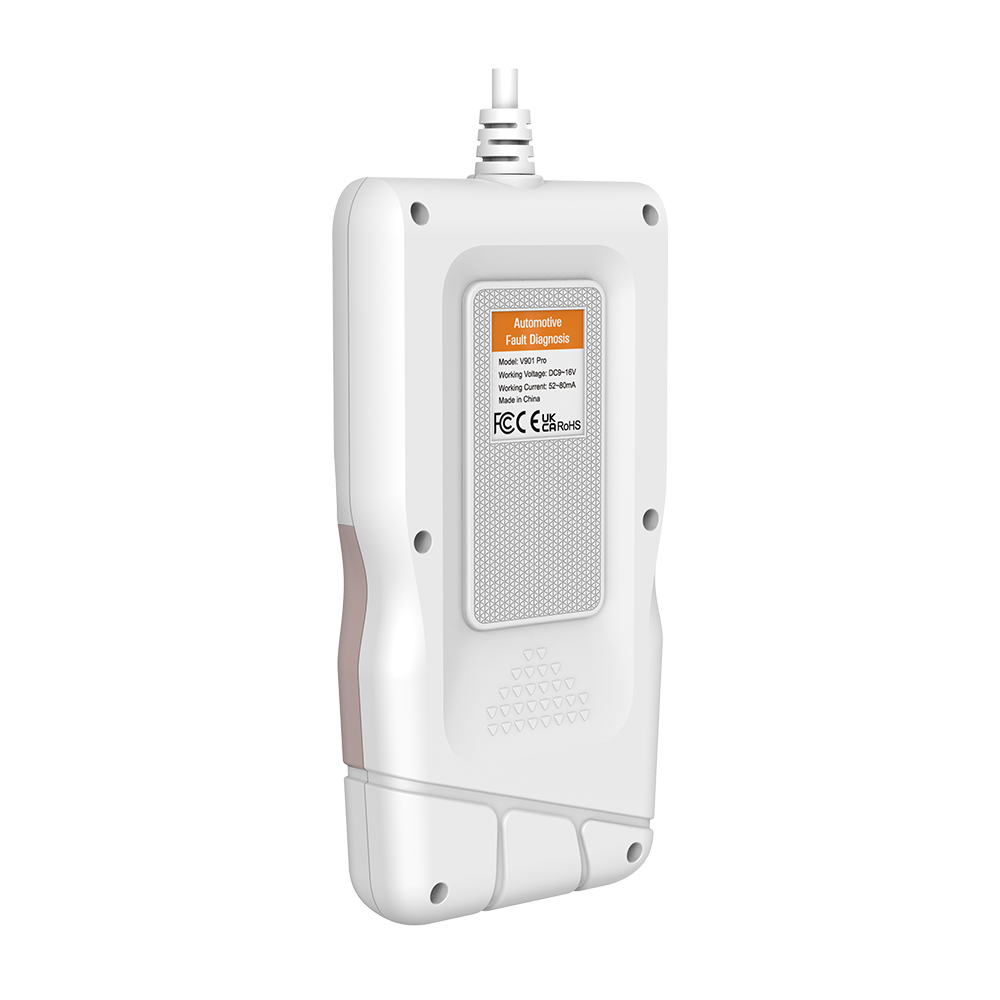

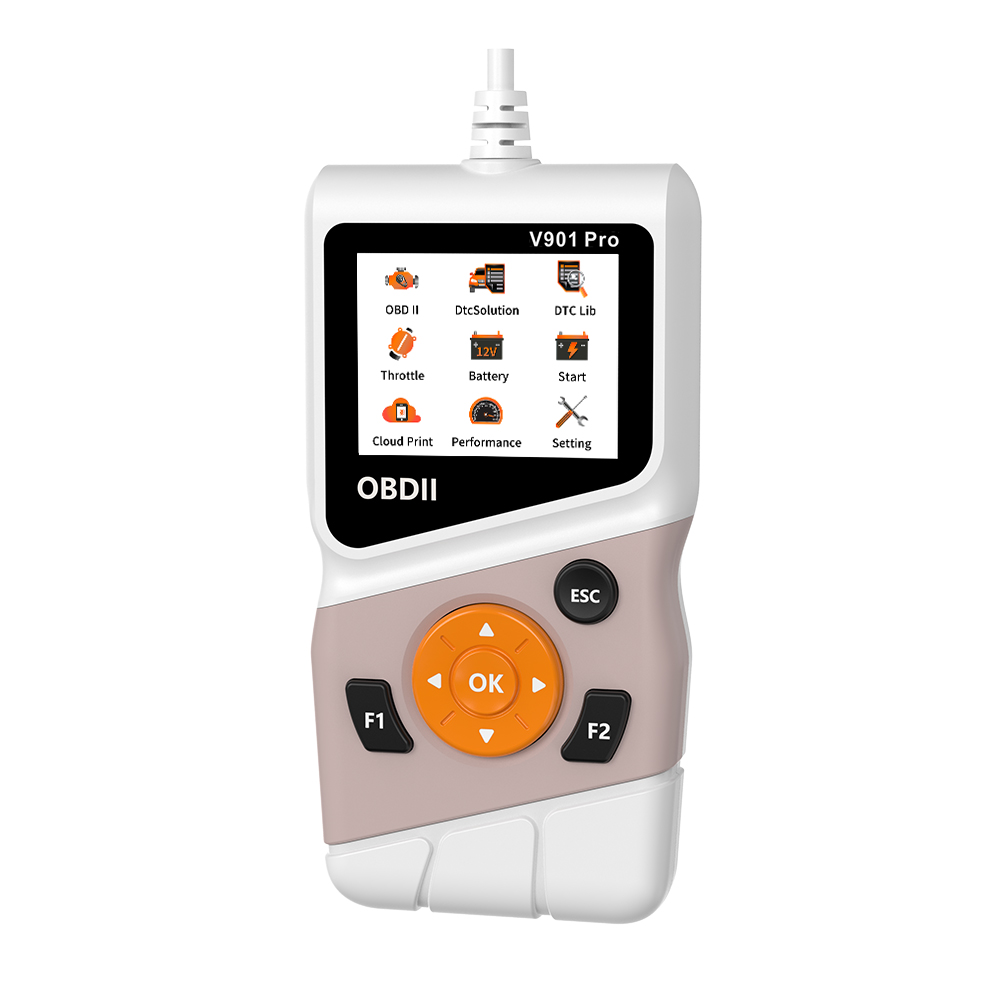

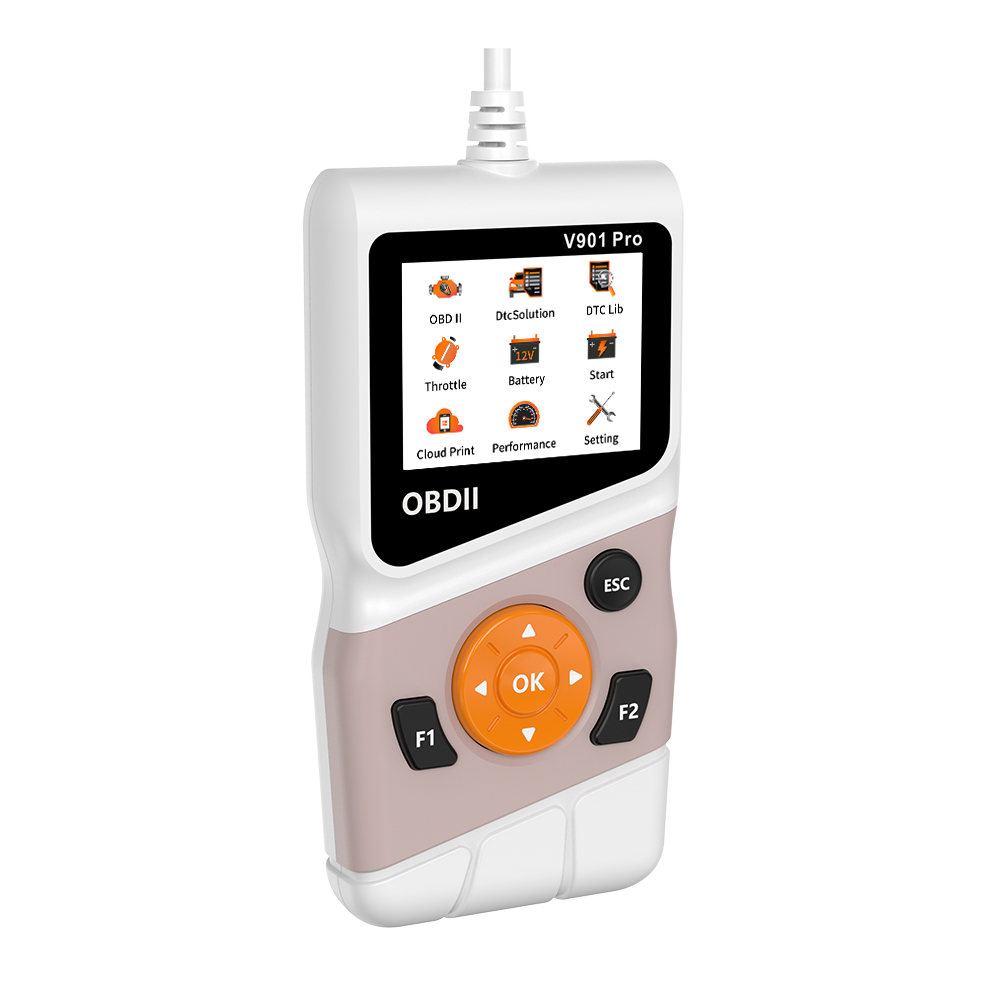

V901 Pro

Professional OBD2 diagnostic scanner with battery testing capability. Features color display, comprehensive DTC lookup library, and 9 special functions including throttle adaptation.

Product Parameters
 Working voltage: DC 9~16V  Working environment: -20~60℃
 Working current: 52~80mA  Storage temperature: -20~60℃
 Supports 11 languages: German, Dutch, English, Spanish, French,
Italian, Russian, Chinese, Japanese, Polish, Portuguese.

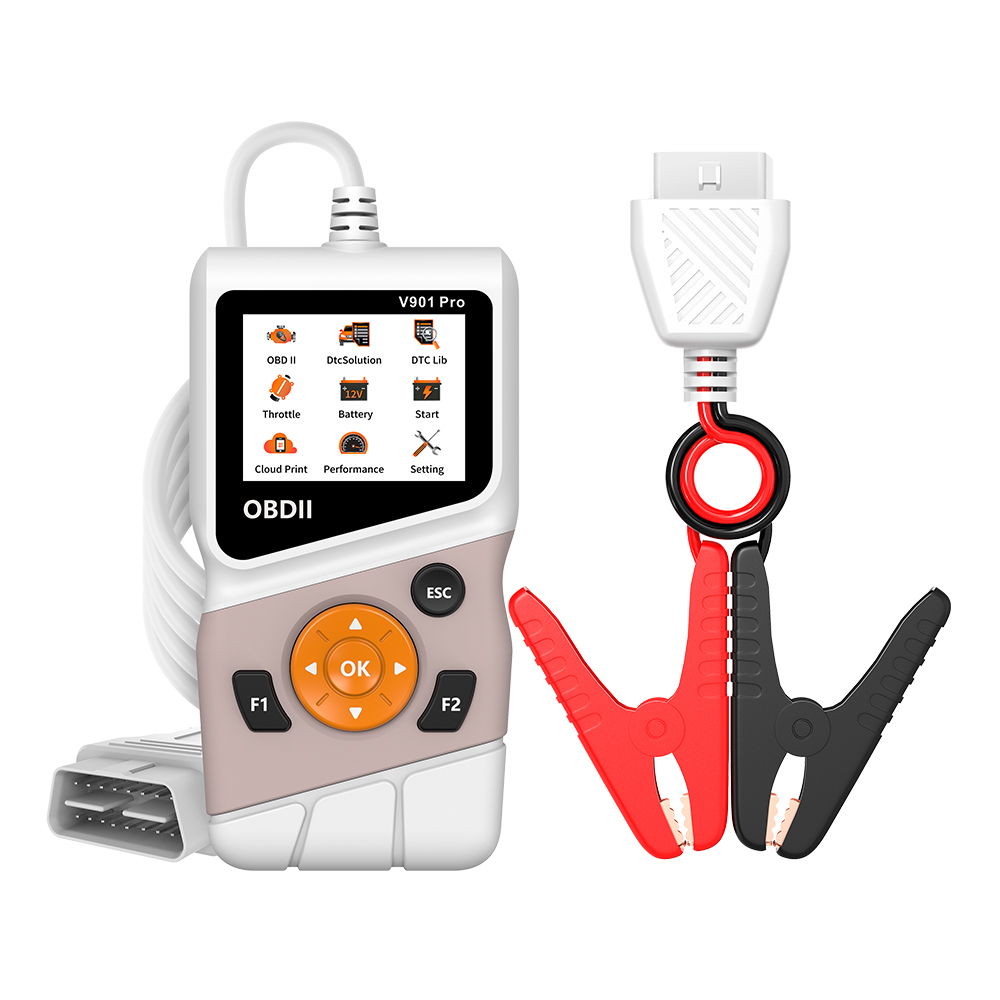

Accessories
Host * 1 Alligator clip * 1 User Manual * 1 Pouch * 1

Product Description
1 Product connection line, used to connect car OBD interface.
2 2.8-inch color display screen, resolution: 240 * 320
3 Indicator light: Red indicates reading of fault code, green indicates no
fault.
4 Confirm key.
5 F1: Quick detection.
6 Return/Exit button.
7 F2: Carbon deposition detection.
8 Up, down, left, right directional keys.
9 OBD male connector, used to connect to the product's OBD female
connector.
10 Alligator clip, used to connect the car battery.

Supported Protocols
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
